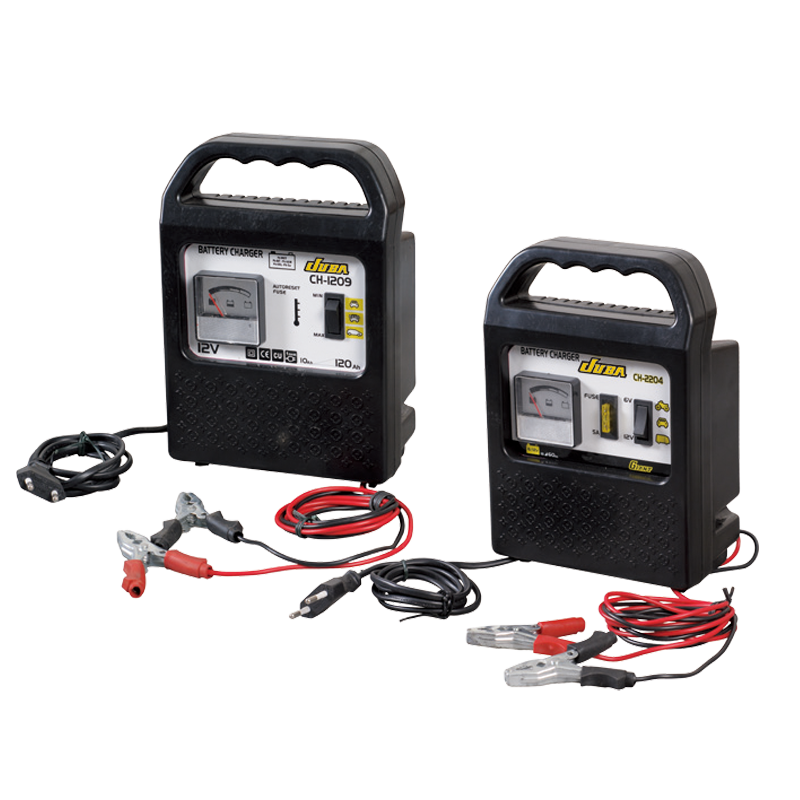

CH-1204、CH-1206、CH-1209、CH-2204 BATTERY CHARGER

● For charging 8V-12V lead-acid batteries.

● Item should be with thermostat for automatic power off in case of high temperature.

● Material:1.4M charger cable, 1.4M power cord with euro plug.

● Packing:box of neutrality.

● Quantity/chest: BPCS.



Contact Us

  • Item

    CH-1204

    CH-1206

    CH-1209

    CH-2204

    Power voltage(v)

    220-240

    220-240

    220-240

    220-240

    Input frequency(HZ)

    50/60

    50/60

    50/60

    50/60

    AC Power input(W)

    55W

    80W

    130W

    60W

    Max Charger Current(A)

    4A

    6A

    9A

    4A

    Rated output

    DC12.0V/2.7A

    DC12.0V/4A

    DC12.0V/6A

    DC6V/2.5A,12V/2.5A

    Battery Capacities(Ah)

    15-60

    20-90

    10-120

    15-60

    N.WZG.W(Kg)

    1.3/1.5

    1.8/2.0

    1.8/2.0

    1.5/17

    Dimension(mm)

    165×105×230

    165×105×230

    165×105×230

    165×105×230
